Name: FE422Z Sprag Type One Way Clutch Bearing 12mm Bore 22mm Outer Dia
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: Fe422z
Price: 2.40 USD
Availability: InStock

Startseite Produkte Ein Weisen-Kupplungs-Lager

FE422Z Sprag Type One Way Clutch Bearing 12mm Bore 22mm Outer Dia

Produktdetails:

Herkunftsort:	Jiangsu, China
Markenname:	SUMA
Modellnummer:	Fe422z

Zahlung und Versand AGB:

Min Bestellmenge:	2
Preis:	$2.40-3.50

Kontakt

Ausführliche Produkt-Beschreibung

Präzisionsbewertung:	P0	Versiegelungsart:	Offen
Typ:	Sprag, Freilaufkupplung	Material:	Chromstahl
Drehmoment:	44 nm	Leerlaufdrehzahl:	5300 U / min
Bohrungsdurchmesser:	12 mm	Außendurchmesser:	22 mm
Drehmoment Fe422:	48 nm	Drehmoment Fe422 Z:	44 nm
Drehmoment Fe422 Z2:	21 nm	Leerlaufgeschwindigkeit Fe422:	5300 U / min
Leerlaufgeschwindigkeit Fe422 z:	5300 U / min	Leerlaufgeschwindigkeit Fe422 Z2:	5300 U / min
Maximaler Umdrehungsumfang:	10000 U / min
Hervorheben:	12mm bore one way clutch bearing , 22mm outer diameter sprag clutch bearing , FE422Z one way clutch bearing

FE422Z FE 422 Z Sprag Type One Way Clutch Bearing FE 442 Z2

FE series Freewheel-clutches transmit or support torque moment by friction contact in one direction and permit idling in the opposite direction.

Applications

Indexing elements: Change from oscillating to intermittent rotary motion.
Backstops: Prevent self-reversing due to load condition when the machine is not activated.
Overrunning clutches: Maintain driven unit activated during slowdown, or switch to higher speed in two-speed operation.

Lubrication

Lubrication is critical for maximum freewheel clutch life and reduced drag. Refer to our Lubrication Selection Table for proper selection.

Note: Clutches (except sealed series FND, FPD, FK 62...-RS, FK 62...-2RS, FKN...-RS, and FKN...-2RS) are shipped rust-protected but not lubricated.

Dimensions and Specifications

dL	DL	Part Number	Torque M [N.m]	Part Number	Torque M [N.m]	Part Number	Torque M [N.m]	Idling speed nmax [RPM]
2	10					FE 410 Z2	0.3	10,000
80	88	FE 488	914	FE 488 Z	788			1,300

Product Features

We offer a wide range of freewheel-clutches with varying design features and dimensions to meet requirements for torque, indexing frequency, idling speed, and environment.

For optimal operation, the supporting equipment around the clutch must be built accurately and of high quality. We provide support units or complete assemblies as needed.

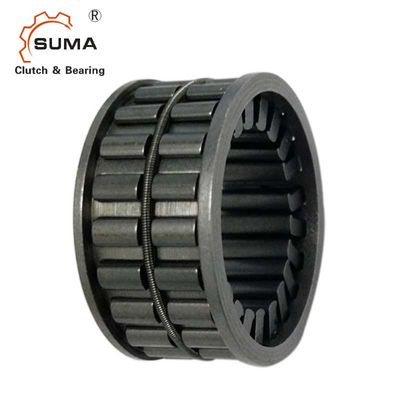

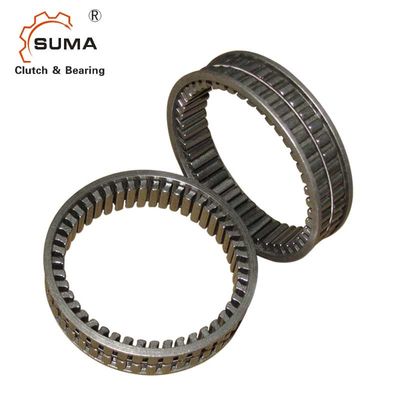

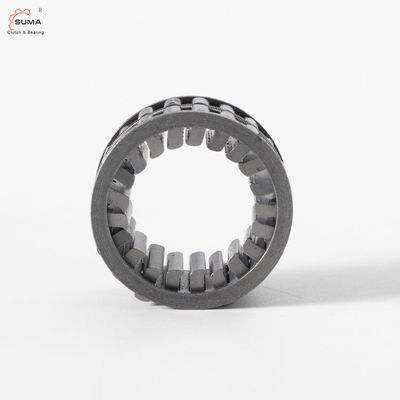

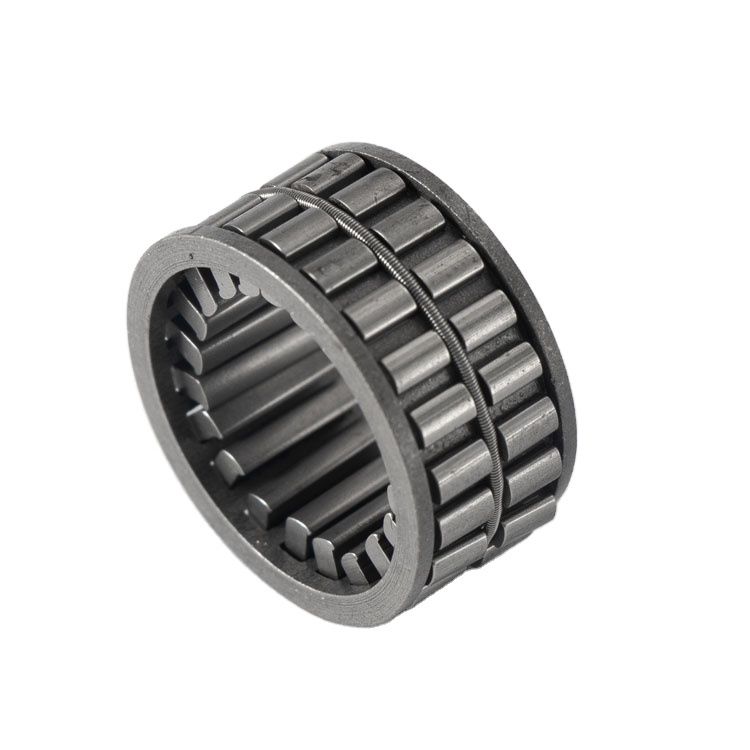

Product Images
