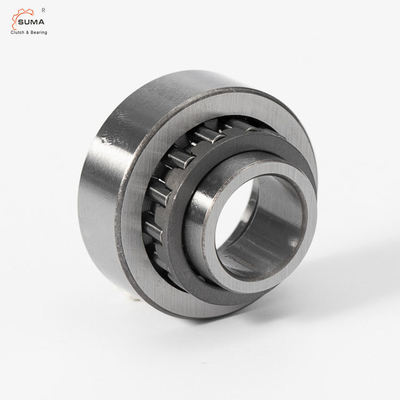

Rollen-Nadel-Lager STO30 STO35 STO40 Stützmit Innenring
Eigenschaften von STO-Stützrollen
STO-Reihen-Stützrollen, ohne Frontringe, mit einem Innenring.
RSTO-Reihen-Stützrollen, ohne Frontringe, mit einem Innenring.
Die STO-Art hat einen Innenring, und das innere und die Außenringe und ihre zusammenpassenden Nadelkäfigbaugruppen können separat installiert sein.
Die Art der Stützrolle RSTO hat keinen Innenring, und die Stützrolle kann direkt auf der gehärteten Welle als der Kanal laufen.
Seit RSTO- und STO-Art Stützrollen haben Sie nicht Rippen und Stirnflächehalteringe, müssen sie während der Installation axial geführt werden, und ihre leitenden Oberflächen müssen mindestens Präzision sein maschinell bearbeiteten.
Maße und Kapazitäten von Yoke Type Track Rollers
Maße | Masse | Bezeichnung | ||||||||||||||
D | d | C | B | D1 | F | E | r | r1,2 | C | C0 | PU | Franc | F0r | |||
Millimeter | Kilogramm | kN | kN | kN | r/min | |||||||||||
19 | 6 | 9,8 | 10 | – | 10 | 13 | 0,3 | 0,3 | 0.017 | STO 6 TN | 3,74 | 4,5 | 0,5 | 4,25 | 6,1 | 7000 |
6 | 11,8 | 12 | 16 | 10 | – | 0,3 | 0,3 | 0.022 | NA 22/6.2RS | 4,02 | 3,65 | 0.425 | 2,55 | 3,6 | 7000 | |
24 | 8 | 9,8 | 10 | – | 12 | 15 | 0,3 | 0,3 | 0.026 | STO 8 TN | 4,13 | 5,4 | 0,6 | 7,5 | 10,8 | 7000 |
8 | 11,8 | 12 | 18 | 12 | – | 0,3 | 0,3 | 0.034 | NA 22/8.2RS | 4,68 | 4,55 | 0,54 | 5,3 | 7,5 | 6700 | |
30 | 10 | 11,8 | 12 | – | 14 | 20 | 0,3 | 0,3 | 0.049 | STO 10 | 8,25 | 8,8 | 1,04 | 8,5 | 12,2 | 6000 |
10 | 13,8 | 14 | 20 | 14 | – | 0,6 | 0,3 | 0,06 | NA2200.2RS | 6,6 | 7,5 | 0,88 | 12 | 17,3 | 6300 | |
32 | 12 | 11,8 | 12 | – | 16 | 22 | 0,3 | 0,3 | 0.057 | STO 12 | 8,8 | 9,8 | 1,18 | 8,3 | 12 | 5600 |
12 | 13,8 | 14 | 22 | 16 | – | 0,6 | 0,3 | 0.067 | NA2201.2RS | 7,04 | 8,5 | 1 | 11,6 | 16,6 | 6000 | |
35 | 15 | 11,8 | 12 | – | 20 | 26 | 0,3 | 0,3 | 0.063 | STO 15 | 9,13 | 10,6 | 1,27 | 7,1 | 10 | 5000 |
15 | 13,8 | 14 | 26 | 20 | – | 0,6 | 0,3 | 0.075 | NA2202.2RS | 7,48 | 9,3 | 1,12 | 9,5 | 13,7 | 5000 | |
40 | 17 | 15,8 | 16 | – | 22 | 29 | 0,3 | 0,3 | 0,11 | STO 17 | 14,2 | 17,6 | 2,08 | 12 | 17,3 | 4500 |
17 | 15,8 | 16 | 28 | 22 | – | 1 | 0,3 | 0,11 | NA2203.2RS | 9,52 | 13,2 | 1,6 | 15,3 | 22 | 4500 | |
47 | 20 | 15,8 | 16 | – | 25 | 32 | 0,3 | 0,3 | 0,15 | STO 20 | 16,1 | 21,2 | 2,5 | 18,6 | 26,5 | 4000 |
20 | 17,8 | 18 | 33 | 25 | – | 1 | 0,3 | 0,18 | NA2204.2RS | 16,1 | 18 | 2,16 | 17,6 | 25,5 | 4000 | |
52 | 25 | 15,8 | 16 | – | 30 | 37 | 0,3 | 0,3 | 0,18 | STO 25 | 16,5 | 22,8 | 2,7 | 18 | 26 | 3400 |
25 | 17,8 | 18 | 38 | 30 | – | 1 | 0,3 | 0,21 | NA2205.2RS | 16,8 | 20 | 2,4 | 17,3 | 24,5 | 3400 | |
62 | 30 | 19,8 | 20 | – | 38 | 46 | 0,6 | 0,6 | 0,31 | STO 30 | 22,9 | 34,5 | 4,25 | 23,6 | 33,5 | 2800 |
30 | 19,8 | 20 | 43 | 35 | – | 1 | 0,3 | 0,32 | NA2206.2RS | 17,9 | 25,5 | 3,05 | 28,5 | 40,5 | 2600 | |
72 | 35 | 19,8 | 20 | – | 42 | 50 | 0,6 | 0,6 | 0,44 | STO 35 | 25,5 | 40,5 | 5 | 36 | 51 | 2200 |
35 | 22,7 | 23 | 50 | 42 | – | 1,1 | 0,6 | 0,51 | NA2207.2RS | 22,4 | 35,5 | 4,3 | 38 | 54 | 2200 | |
80 | 40 | 19,8 | 20 | – | 50 | 58 | 1 | 1 | 0,53 | STO 40 | 23,8 | 39 | 4,75 | 34,5 | 49 | 1900 |
40 | 22,7 | 23 | 57 | 48 | – | 1,1 | 0,6 | 0,63 | NA2208.2RS | 27,5 | 40,5 | 5 | 35,5 | 51 | 1900 | |
85 | 45 | 19,8 | 20 | – | 55 | 63 | 1 | 1 | 0,58 | STO 45 | 25,1 | 43 | 5,3 | 34,5 | 50 | 1700 |
90 | 50 | 19,8 | 20 | – | 60 | 68 | 1 | 1 | 0,62 | STO 50 | 26 | 45,5 | 5,7 | 34,5 | 50 | 1600 |
50 | 22,7 | 23 | 68 | – | – | 1,1 | 0,6 | 0,69 | NA2210.2RS | 28,1 | 43 | 5,3 | 34,5 | 50 | 1600 |
